Philippi-Hagenbuch’s Load Ejector System is engineered to virtually eliminate material carryback, effectively increasing load capacity and improving operational efficiency. This solution allows operations to haul the full rated capacity with each load and reduce downtime associated with removing carryback from the truck.
Load Ejectors are professionally engineered to fit the exact make and model of any articulated or rigid frame off-highway haul truck and address the specific areas of the body where material tends to build up.

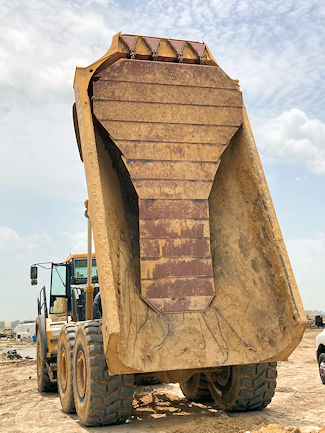

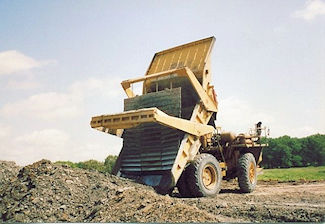

Sticky materials, such as clay, dirt, mud, fly ash and bottom ash, tend to build up in haul truck bodies, minimizing volumetric capacity when carried back with the truck for the next load. The Load Ejector System consists of an overlapping jointed plate lattice design that rests flat against the front slope and floor inside of the truck body. When the body is raised, the Load Ejector separates from the truck bed by gravity, removing material as it hangs vertically away from the body. This leaves an empty truck with its full capacity for the next load.
“We often see operations accumulate up to 50% of their truck body’s volumetric capacity in carryback, and the costs to haul that material back and forth can really add up both in lost payload and in additional wear and tear on the truck,” said Josh Swank, vice president of sales and marketing at Philippi-Hagenbuch. “Removing it requires significant downtime, not only for the haul truck but possibly for an excavator to scrape out the material and also for the operators who are taken away from their regular production roles for 20 minutes or more per truck that needs cleaned out. Load Ejectors help operations save valuable time and resources.”
Philippi-Hagenbuch engineers Load Ejectors with three different mounting styles, each allowing for easy installation and removal. The standard mount is used for carryback that accumulates on the front slope of the body but not on a majority of the floor surface. The built-up mount is engineered to address material that sticks to the front slope as well as down and back toward the rear of the body floor. The rotating mount provides full-length coverage from the front slope to the rear of the body floor and automatically pulls away from the truck body when the bed is dumped.
Additionally, Philippi-Hagenbuch offers two material options to match the Load Ejector with different applications. The standard-duty design is made of high-strength Grade 80 steel and is intended for operations with a minimal abrasion, while the heavy-duty design is built with Hardox 450 Steel for applications that haul highly abrasive materials.
“Our entire focus is on engineering custom solutions that help each operation address the unique challenges affecting their off-highway haul truck efficiency,” said Swank. “Efficiency starts with using the truck’s full rated capacity, and Load Ejectors allow operations to haul what they are entitled to with every load, utilizing their existing truck beds.”
To learn more about the Load Ejector System and Philippi-Hagenbuch’s other custom off-highway haul truck solutions, visit www.philsystems.com.
About Philippi-Hagenbuch Inc.
Engineering innovative haul-truck solutions for over 54 years, Philippi-Hagenbuch, Inc. is located in Peoria, Illinois, and has been building equipment for off-highway haul trucks since 1969. During this time PHIL has become the global leader in off-highway truck customization. In addition to their innovative tailgates, push blocks, rear eject bodies and trailers, Philippi-Hagenbuch designs and builds custom high-volume end-dump bodies, lowboy and bottom dump trailers, sideboards, load ejectors and water tanks for nearly every make and model of articulated and rigid frame off-highway truck available. For more information visit www.philsystems.com.
